Model 6521 Truck Mounted Cranes

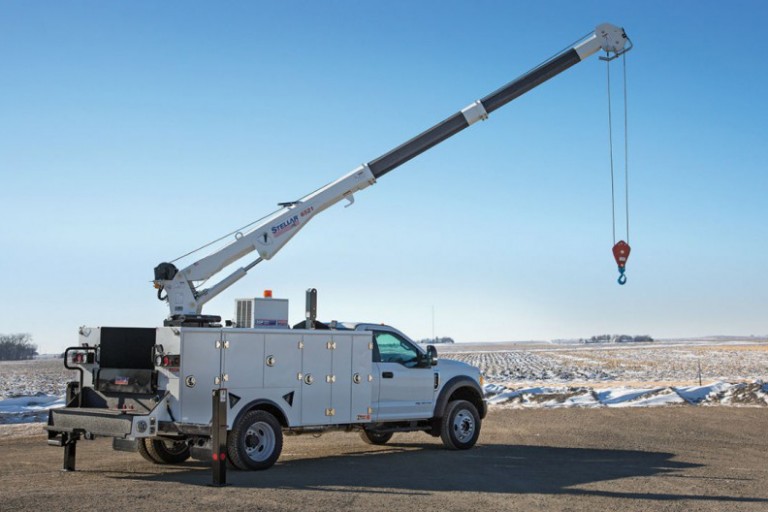

The 6521 service crane and mechanic truck is ideal for public utilities, municipalities, water works, and any other situation needing heavy lifting. Stellar Industries was the first U.S. manufacturer in this class of crane to offer several unique features. These include the standard proportional radio remote control, hexboom construction, a planetary winch and hydraulic extensions.

Specs

Key Specifications
Crane Rating 35,000 ft-lbs (5.3 tm)
Standard Boom Length 11'0" (3.35 m) from CL of Crane
Maximum Horizontal Reach 21' 0" (6.40 m) from CL of Crane
Maximum Vertical Lift 22' 11" (6.99 m) from Crane Base
Lifting Capacity 6,000 lbs @ 5' 10" (2,722 kg @ 1.78 m)
Power Supply PTO & Pump: 8 gpm @ 3,000 psi (30.3 lpm @ 207 bar)
