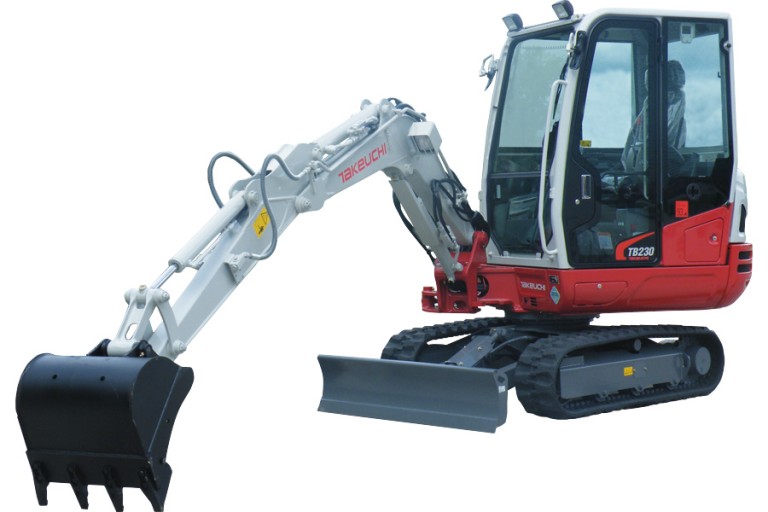

John Deere Construction & Forestry - TB230 Excavators

With its narrow width the TB230 is able to work on job sites with limited accessibility, and the conventional tail swing design provides excellent stability and greater operator space.  The control valve and hydraulic components are now conveniently  located under the right side cover for improved accessibility.


Key Specifications
Operating Weight 6,360 lb (2,885 kg)
Maximum Bucket Breakout Force 6,471 lb (2,935 kg)
Maximum Arm Digging Force 2,900 lb (1,325 kg)
Traction Force 6,340 lb (2,876 kg)
Horsepower @ 2,400 rpm 24.4 hp (18.2 kW)
Maximum Reach 15 ft 10.9 in (4,850 mm)
