McCloskey Washing Systems


Mobile Rinser

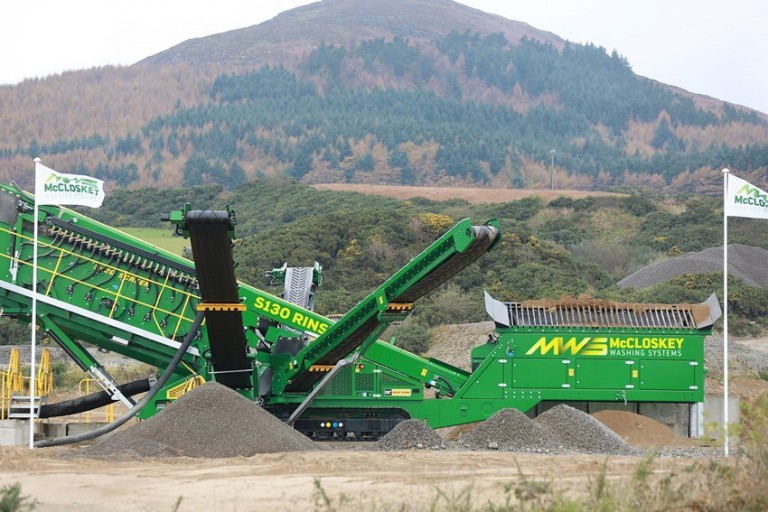

Available as a tracked or wheeled unit, the S130 comes complete with up to 3 side conveyors and split catch box for up to 4 grades of aggregates and 2 grades of sand. The S130 Rinser's fast set up and relocation abilities, make it ideal for contractors and hire fleets.  Also, as two machines in one, the S130 Rinser can be easily converted to dry screen mode. It comes complete with large capacity 15' hopper, remote control tipping grid, feed conveyor, and a 20' x 5' heavy duty, high energy rinser screen box.


Features & Benefits

  • Low cost set up - no crane hire required

  • Easily converted to dry screen mode

  • 8 independently controlled spray bars on each deck delivering 2 bar/29psi of water pressure at each nozzle

  • Polyurethane or woven wire screen media options

  • Extra coupling facility to run additional equipment such as McCloskey Sand Screws and Stackers


Key Specifications
Hopper capacity 15'
