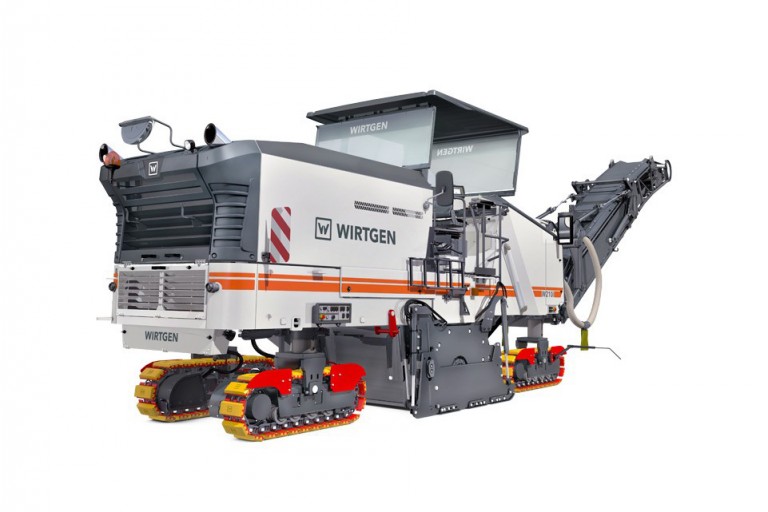

Compact large milling machine that can be equipped with milling drum assemblies of 4’ 11”, 6’ 7” or 7’ 3” (1.5 m, 2.0 m or 2.2 m) working width. Three selectable engine speeds enable a broad range of applications: large-scale surface course rehabilitation, complete pavement removal at full depth, fine milling, and many more. Automatic machine alignment using PTS, intelligent ISC track drive control for maximum traction, and low operating cost due to the WIDRIVE machine management system. The milling machine can optionally be equipped with the Wirtgen LEVEL PRO leveling system.
|Milling width||6′ 7″ (2,000 mm)|
|Milling depth||0 - 13″ (0 mm - 330 mm)|
|Engine power||537 kW / 720 HP (537 kW / 730 PS)|
|Emission standards||EU Stage 4 / US Tier 4f|
|Operating weight CE||63,714 lbs (29,150 kg)|
|Number of crawler tracks||4|
