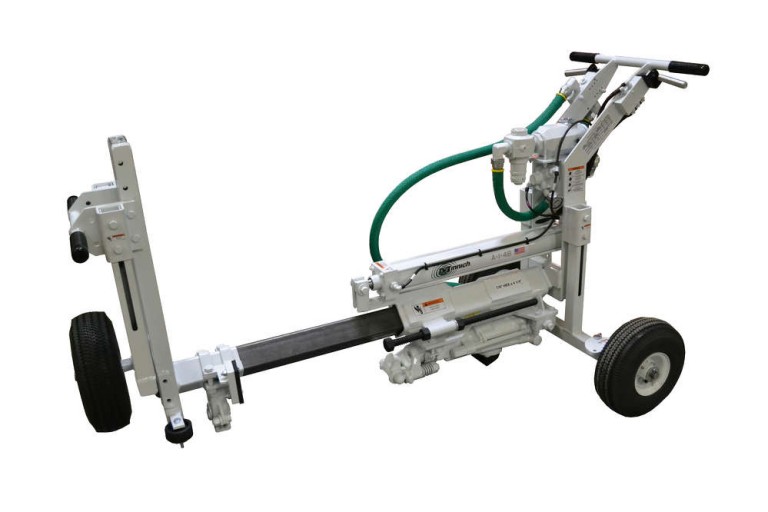

Minnich Manufacturing - A-1 SERIES Concrete Barrier Drills

Maximize versatility and work efficiently in tight spaces with Minnich A-1 Series single-drill, on-grade units. A-1 Series machines can be configured to drill four ways — horizontally, vertically, into a wall or six inches from a corner — eliminating the need for additional equipment or conversion kits. The A-1 Series includes models that can fit into 36- and 48-inch cutouts with their wheels on, making repositioning easy. For jobs in even closer quarters, the A-1 Series offers drill options for 24- and 30-inch openings.

Specs

Key Specifications
Drill Steel Shank Size .875" x 3.25" - .875" x 4.25"
Drill Steel Length 8" - 24"
Drill Bit Diameter .625" - 1.00" - .625" - 2.50"
Maximum Hole Depth 7" - 18"
Minimum Cutout Width 24" - 48"
Distance From Top of Slab 3" - 12"
Hits Per Minute 180 RPM - 240 RPM
