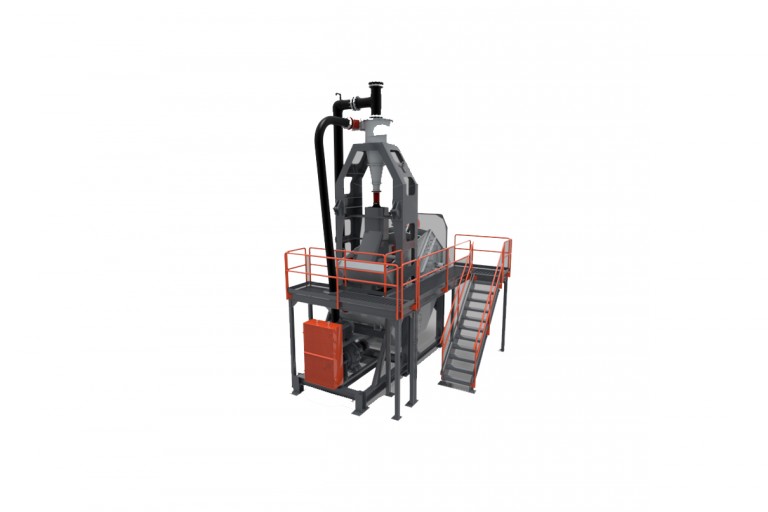

Spirit™ Sand & Aggregates Washing plants

Providing a solution for sand production and fines recovery, the Spirit™ Sand Plant includes a cyclone and dewatering screen to classify and produce salable sand product that meets customer specs. The life of a pit or quarry can be drastically lengthened by adding classifying and washing equipment to your application. The Spirit Sand Plant helps operators remove heavy clay from valuable sands, transforming useless material into product that is ready to go to market. The unit’s wetted surfaces are lined with cast polyurethane, eliminating seams and the risk of loose liners to provide the best wear properties available.


Key Specifications
Sand production output 60 - 200 tph
Sand production cyclone 16 - 24"
Sand production screen 3’x8′ - 5'x 10'
Ultra fines recovery output 1500 gpm - 3500 gpm
Ultra fines recovery cyclone 16"
Ultra fines recovery screen 3' x 8'
