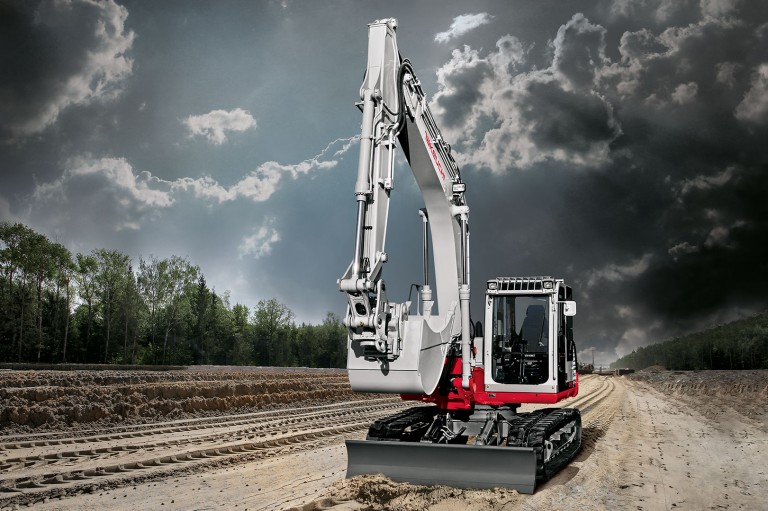

Takeuchi - TB1140 Series 2 Excavators

The TB1140 Series 2 features a pivot boom and standard backfill blade giving it the functionality of a compact excavator. With its unique configuration it is able to work in a wide range of applications including road and bridge work. Additionally, the high capacity hydraulic system, dual auxiliary hydraulic circuits, and proportional auxiliary hydraulic controls make the TB1140 Series 2 an outstanding platform for a wide range of hydraulically controlled attachments.


Key Specifications
Operating Weight 34,116 lb (15,475 kg)
Maximum Digging Depth 18 ft 0 in (5,485 mm)
Maximum Reach 28 ft 9 in (8,755 mm)
Maximum Bucket Breakout Force 22,188 lb (10,064 kg)
Maximum Arm Digging Force 12,634 lb (5,730 kg)
