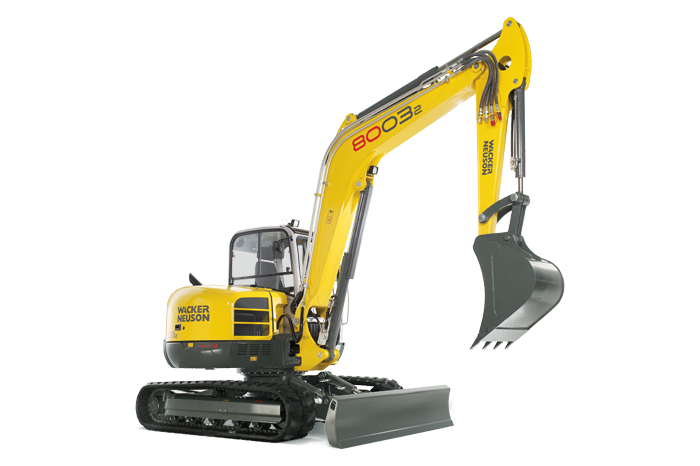

8003 Excavators

The minimum swing radius 8003 track excavator offers one of the smoothest and most powerful hydraulic systems available on the market today in this class. This 8-ton excavator comes with an air conditioned cab, and a choice of short or long dipperstick. Powered by the economical Yanmar 4-cylinder diesel engine, the 8003 track excavator offers rubber track, dozer blade and boom-mounted working light. Hydraulic system features oil cooler, pilot joystick controls and dipperstick-mounted auxiliary hydraulic connection for two directions of motion. Other standard features include: auto-shift 2-speed travel drive, hydraulically dampened drive pedals and levers, flat faced couplers and control pattern selector valve.

Specs

Key Specifications
Operating weight min. 17,924 lb
Breakaway force max. (ISO 6015) 13,522 lbf
Digging Depth 169 in
Net Power 2,100 rpm/58.5 hp
