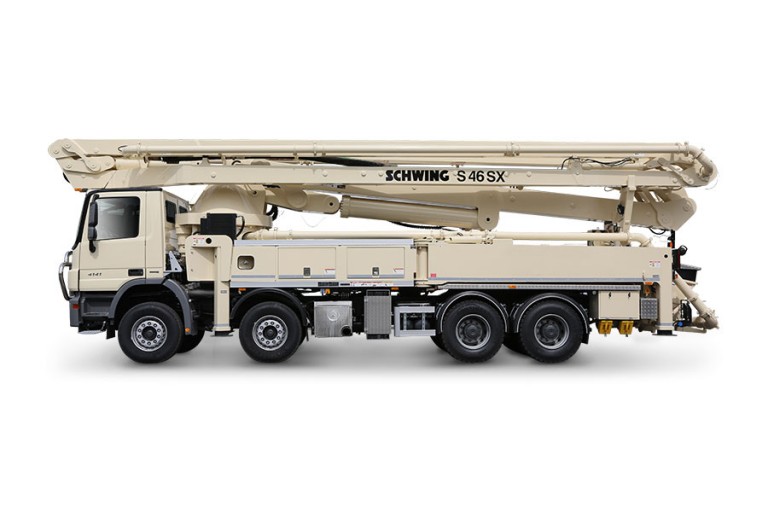

Schwing America, Inc. - S 46 SX Concrete Pump Trucks

Features & Benefits

4-Section Overhead Roll and Fold

The innovative Overhead Roll and Fold boom design works on bridges, commercial and industrial work. Hundreds of pumpers and concrete contractors have discovered the versatility of a boom with a main section that articulates 180-degrees.

Super X Outriggers

Incorporates Schwing’s exclusive Super X Outriggers that set up fast and provide a compact and stable platform for pumping.

Generation 3 Pump Kit

Outperforms every other concrete pump on high visibility projects while also placing millions of yards on everyday pours.

Vector Controls

Valuable operational data at your fingertips to allow monitoring of the pumping process from the remote control box.

Rock Valve

No other sequencing valve combines lowest cost per yard maintenance costs and ease of rebuilding as the Rock Valve.


Key specifications
Vertical Reach 45.6 m
Horizontal Reach 41.7 m
Theor. Concrete Output 163 cu m/h
Max. Pressure on Concrete 80 bar
