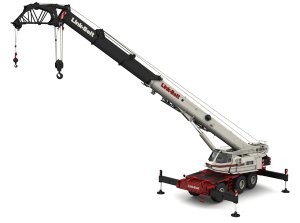

Building on the RTC-80100 Series II’s class-leading standards for maneuverability and transportability, Link-Belt announced the new 110-ton (100-mt) RTC-80110 Series II rough terrain crane. Adding to that maneuverability, the RTC-80110 Series II features Link-Belt Pulse, a tilting operator’s cab, a new onboard fly with extensions, and improved capacity.
The 80110 features a full power boom fabricated from ultra-high-strength steel and formed in Link-Belt’s own facility. The main boom is 150 feet (45.7 m) long and incorporates Teflon wear pucks to eliminate boom grease.
Fly options include both two- and three-piece lattice bi-folds, 31–55 feet (9.4–16.7 m) long, for a maximum tip height of 250 feet (76.2 m). All flies manually offset to 2, 15, 30, and 45 degrees. An available 10-foot (3-m) heavy-lift fly—integral to one of the fly options—swings and pins into place. It has over 25 tons (22.6 mt) of capacity and lift procedures for two-load-line picks.
This new RT also features the new Link-Belt Pulse total crane operating system. Far more than just a rated capacity limiter (RCL), Link-Belt Pulse includes a boom extend mode controller (EMC), self-diagnostic capabilities, fine inching, and continuous monitoring of multiple crane functions and conditions. And most importantly, it’s an in-house, Link-Belt design.
It transports in two loads with the main load under 94,000 pounds (42 637.7 kg) including boom, both winches, three-piece fly, and tires attached. On a trailer, without the counterweights and outrigger boxes, it’s less than 14 feet (4.3 m) high and 10 feet (3 m) wide. The 80110 can be disassembled and ready for transport in less than one hour with no helper crane.
Not only is this crane easy to transport, it’s easy to maneuver on the job site. Of course, the RTC-80110 Series II has the same 6x6x6 hydrostatic drive of the proven 80100. This drive has variable speed piston pumps supplying hydraulic power to all six drive motors for outstanding creep control. This drive system, along with smaller tires, gives an overall height of only 12 feet, 2.5 inches (3.72 m) and a turn radius of 21 feet (6.4 m) for the 26-foot (7.92-m) long carrier. A switch in the cab controls the four independent steering modes: two-wheel front, four-wheel rear, six-wheel, and crab. With a 45.3-ton (41-mt) pick and carry capacity, long reach, low height, and incredible gradeability, the 80110 is an ideal solution for industrial sites.
The 80110’s tilting upper cab is a first for a Link-Belt RT. For high-angle lifts, it can tilt up to 20 degrees. A swing-up roof window with windshield wiper and washer, engine-dependent warm water cab heating, a sun screen, cup holder, and a five-way-adjustable seat with headrest ensure a comfortable work environment.
Other features of the RTC-80110 Series II:
The only 110-ton (100-mt) RT that can transport with its tires attached
Full power boom with class-leading capacities
Cummins Tier 4i/Euro Stage IIIB emissions compliant engine
The CALC (Confined Area Lifting Capacities) system
Large engine access
Supported 24/7 by Link-Belt Preferred including online manuals, literature, a ground bearing calculator, and 3D Lift Plan
