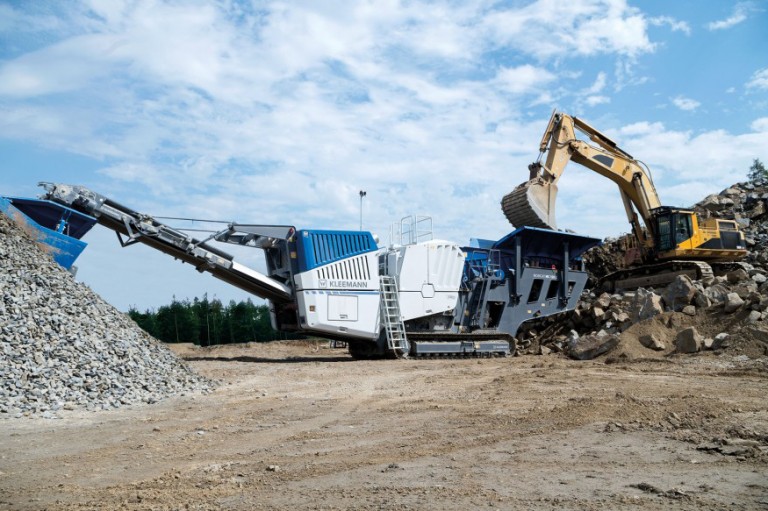

Kleemann - MOBICAT MC 120 Z PRO Track Mounted Jaw Crushers

The MOBICAT MC 120 Z PRO, with a feed opening of 1,200 x 800 mm, can be used perfectly for pre-crushing of almost all natural stones. The plant impresses with a robust crusher unit with long crusher jaw and a powerful crusher drive. It achieves an impressive maximum feed capacity of 650 t/h. Effective prescreening is guaranteed by a double-deck prescreen with an extra large screen area of 3.5 m². The plant offers low-maintenance operation and flexible transportability because, in spite of its size, it can be transported in one piece. Particularly practical: the optional crusher unblocking system can loosen seized material without any problems so that the crusher is ready for operation at all times. Equipped with an optional discharge chute, the crusher discharge conveyor is protected against sharp-edged stones.


Key Specifications
Feed capacity up to approx. 650 t/h
Feed size max. 1.100 x 700 mm
Feed height (with extension) 4.925 (5.280) mm
Hopper capacity (with extension) 10 (13) m³
Crusher inlet width x depth 1.200 x 800 mm
Engine power Tier 4f/Stage IV 365 kW
Transport weight 72,000 kg
