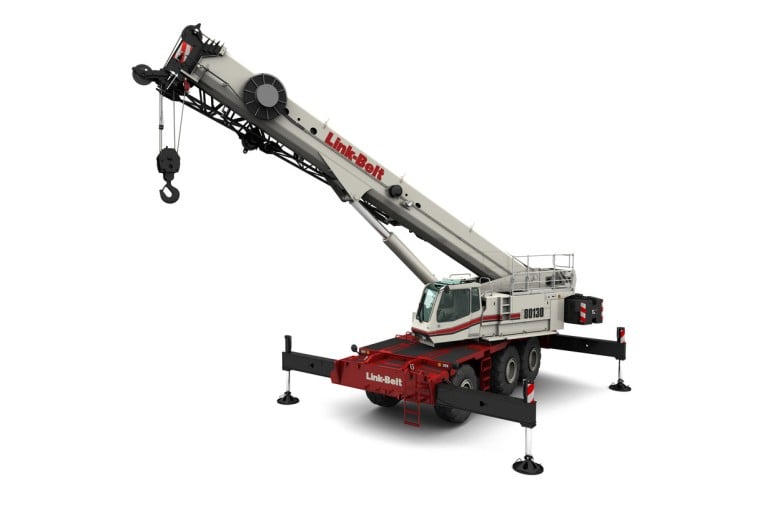

Link-Belt Construction Equipment Company - RTC-80130 Series II Rough Terrain Cranes

The RTC-80130 Series II rough terrain crane is a full power latching style boom with market leading capacity for its class. It's innovative 10 ft (3.0m) fly is integral to one of the on-board fly options, and comes equipped with proven six-wheel hydrostatic drive with fully independent hydraulic suspension.


Key Specifications
Nominal Capacity @ Radius 130 US Tons @ 9' (120mt @ 2.74m)
Standard Boom 41.4' - 162' (12.6-49.3m)
Telescope System Pin & Latching
Max. Tip Height 278' (84.7m)
Max. Line Pull 21,022 lbs. (93.51kN)
Max. Speed (ft per minute) 431 fpm (131.4m/min)
