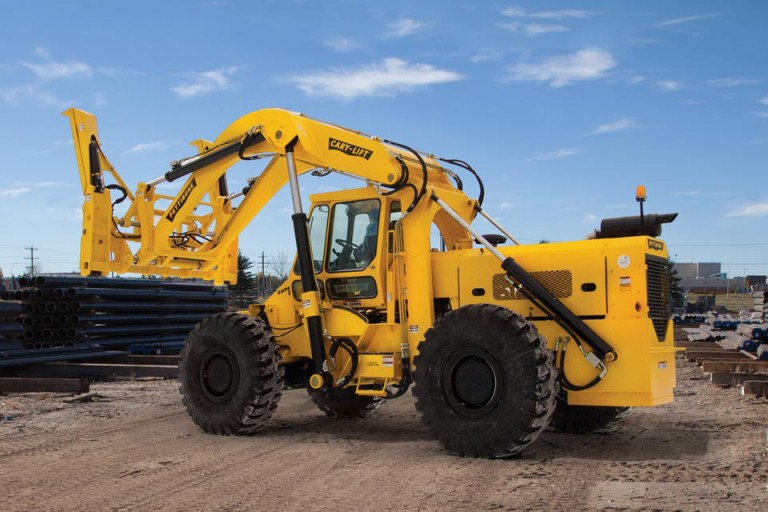

Cary-Lift 254i Material Handlers

The Cary-Lift 254i provides exceptional power and maneuverability to move loads more effectively than articulated loaders, both in pipeyards and on rough terrain jobsites.

Specs

Key Specifications
Overall Height Carrying position: 12' 7" (384 cm) / Max raised position: 19' 4" (589 cm)
Fork Length 60" (152 cm) standard, others available
Ground Clearance 21.5" (55 cm)
Wheel Base 12' (366 cm)
Overall Length Carrying position: 26' 5" (805 cm) / At max reach: 32' (975 cm)
Overall Width 10' 6" (320 cm)
Total Operating Weight 53,500 lbs (24,267 kg)
Engine Model/Power 225 HP (168 kW) Cummins QSB6.7 Tier 4 Final with DOC and SCR aftertreatment
Maximum Lift Height 14' (427 cm)
Max Load Capacity (Retracted) LC from back of fork: 25,000 lbs (11,340 kg) 24" / tipping load: 50,000 lbs (22,680 kg)
Max Load Capacity (Extended) LC from back of fork: 15,000 lbs (6,804 kg) 24" / tipping load: 20,000 lbs (9,072 kg)
