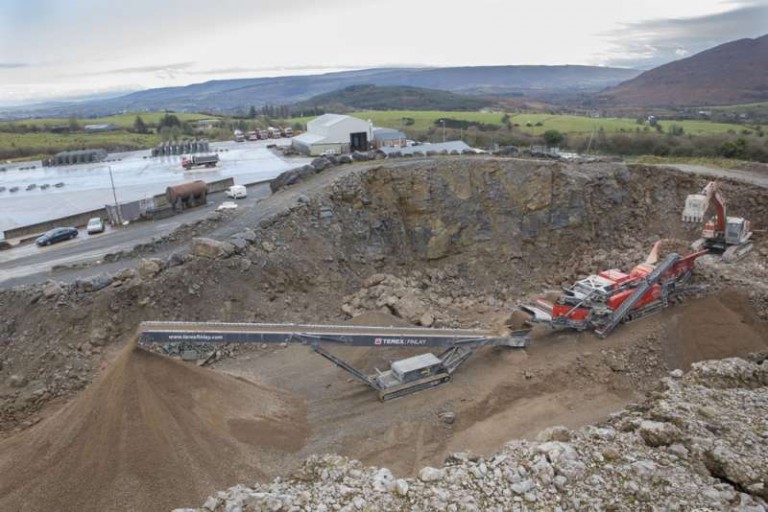

I-120RS Track Mounted Impact Crushers

The Terex Finlay I-120RS shapes the future through innovation. This new generation impact crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications. Incorporating the Terex® CR038 impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape. A key component of the machine is the on-board innovative quick detach 3.66m x 1.53m (12' x 5') two deck screen.  For applications not requiring recirculation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contract crushing operators.

Specs

Key Specifications
Net Engine Power Tier 3 / Stage IIIA: Caterpillar 273kW (350hp) / Stage IIIA Constant Speed: Scania DC09 257kW (350hp) / Tier 4F / Stage IV: Scania DC09 257kW (350hp)
Rotor Size Ø 1033 mm x 1100 mm (Ø 41" x 44")
Transport Weight 48 150 Kgs (106 153 lbs)
