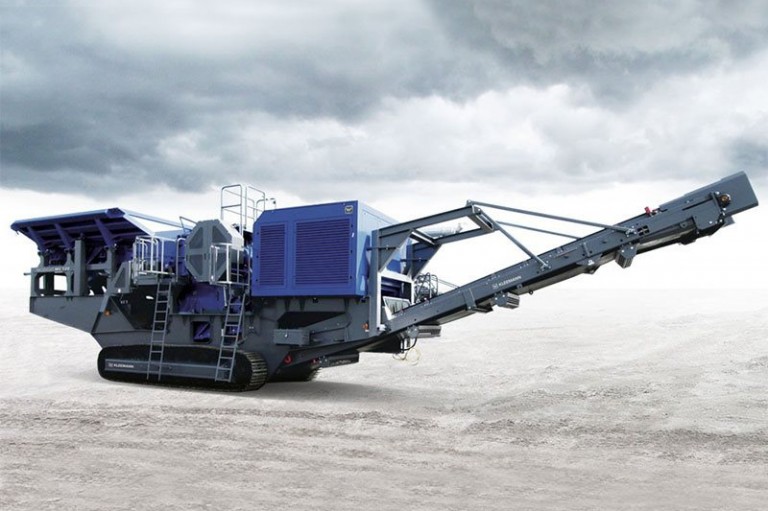

Mobile jaw crusher from the new EVO generation with diverse possibilities of use and is ideal for requirements in the Contractor area. The jaw crusher has an inlet opening measuring 44” x 28” (1,100 mm x 700 mm) and achieves a maximum feed capacity of 331 US t/h (300 t/h). Its diesel direct drive ensures excellent efficiency. The MC 110 Ri incorporates very effective primary screening thanks to its integrated grizzly. The hopper walls are integrated in the chassis and it has a fully hydraulic crushing gap adjustment both of which guarantee quick setup times.
|Feed capacity up to approx.||331 US t/h|
|Feed size max.||41" x 26"|
|Feed height (with extension)||11' 2"|
|Hopper capacity (with extension)||7.2 yd³ (12.4 yd³)|
|Crusher inlet width x depth||44" x 28"|
|Transport weight||85,000 lbs|
