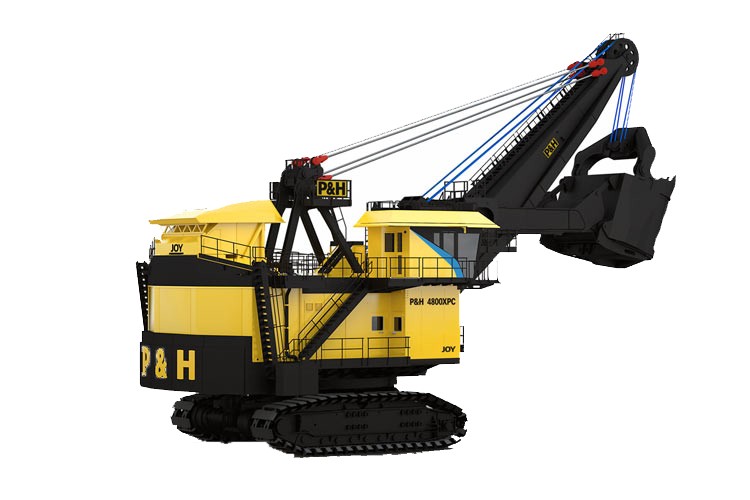

4800XPC Mining Shovels

The 4800XPC electric rope shovel, featuring Adaptive Controls technology, is specifically designed for three-pass loading of 327 to 363 mt (360 to 400 st) ultra-class haul trucks. The 4800XPC, when compared to the 4100XPC, offers up to 20% increase in production and up to 10% decrease in cost per ton.

Specs

Key Specifications
Nominal payload 122.7 mt (135 st)
Nominal dipper capacity (SAE struck) 65.7 to 70.3 m3 (86 to 92 yd3)
Height of cut 18.0 m (59 ft. 0 in. )
Radius of cut 24.3 m (79 ft. 9 in.)
Maximum dump reach 24.8 m (81 ft. 3 in.)
Rated suspended load 209 mt (230 st)
Optimum truck size 363 mt (400 st)
