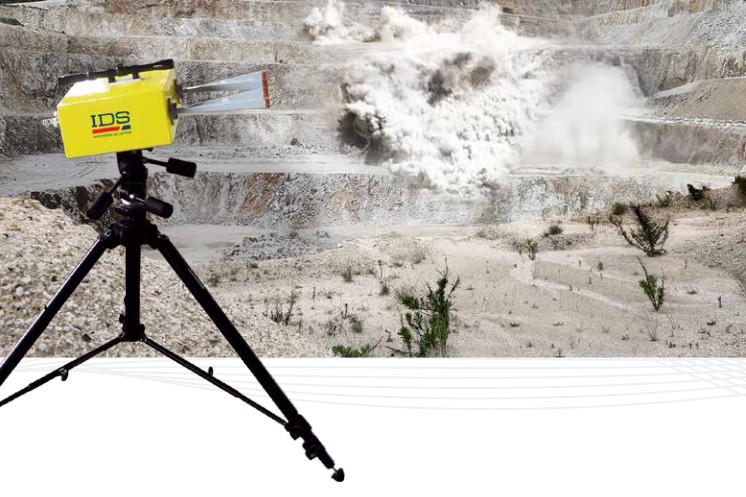

IBIS-FB

IBIS-FB is a revolutionary remote sensing monitoring system designed to support the assessment of blasting operations and control their impact both on the pit slopes and nearby structures. Based on microwave interferometry technology, IBIS-FB provides remote broad area measurements of ground vibrations with high accuracy. After every single blast IBIS-FB measures a range of performance indexes at multiple points at long distances, without the need to physically place any sensor or marker on the slope.

Specs

Key Specifications
Displacement Accuracy 0.03 mm
Velocity Accuracy 4 mm/s
Range Resolution Up to 1 m
Operating Range Up to 1000 m
Broad Area Coverage 100 x 100 m2 at 1 km
Overall Weight (including batteries) 32 kg
Operating Temperature -30°C to +55°C
Acquisition Frequency Up to 200 Hz
