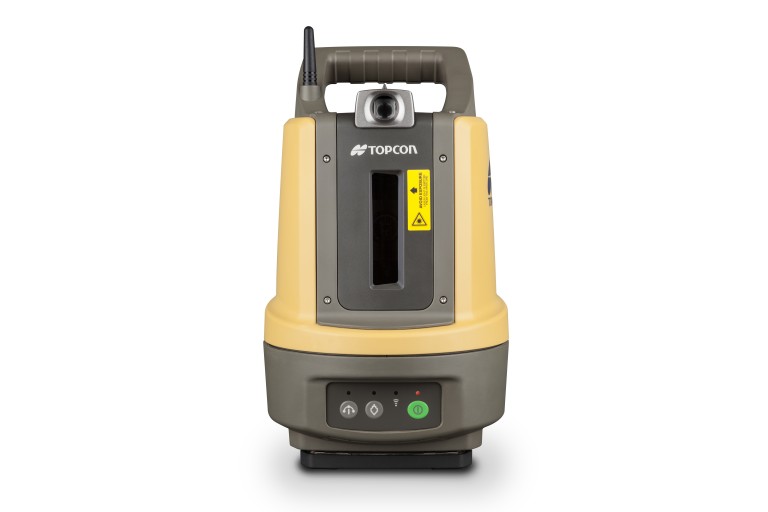

By blending our self-leveling laser and robotic total station technologies, Topcon created a new way to perform construction and BIM layout. Simply position and turn on the layout navigator to self-level and connect, automatically. Control the LN-100 with either the full-capability MAGNET Field data collection software, or with MAGNET Construct, the no-cost Android app.

Features & Benefits

RUGGED COMPACT DESIGN

Small and lightweight; Waterproof – dustproof design; Easy to carry; Completely sealed housing.

EASY SETUP AND OPERATION

On the ground or decking; Mounts on tripod or column clamp; Automatic self-leveling; Alerts user if disturbed.

ADVANCED 3D MEASURING AND LAYOUT

Built-in wireless connectivity; 100m (328 ft.) working range; Automatically turns to layout points; Tracks a standard prism.

Construction Layout

Construction projects demand precise positioning and documentation of as-built conditions for quality control. Topcon’s versatile LN-100 is ready for all types of layout and alignment applications.

Specs

Key Specifications
Accuracy 5 arc seconds +/- 1.5 mm at 50m (1/8 in. at 164 ft.)
Guide Light Range: ~100m V : ±12°, H : 8°
Dimensions 185 x 196 x 295mm
Weight 4kg (8.8 lbs.)
