Motor graders: equipment insight and trends

Motor graders are among the most skill-intensive machines on the job site. Achieving a smooth, accurate finish requires continuous coordination of steering, articulation, blade position, and machine speed. This is a skill that typically develops through years of experience. As contractors face ongoing labour shortages and an influx of less-experienced operators, OEMs are introducing technologies that simplify machine operation without compromising precision.

Rather than replacing operator skill, the latest motor graders reduce operator workload through automation, integrated grade control, improved visibility, and more intuitive controls. These machines are easier to learn, more comfortable to operate, and capable of delivering consistent results with fewer manual inputs. Across the latest generation of machines, OEMs are simplifying operation in different ways while pursuing the same objective: helping operators achieve precision with less effort.

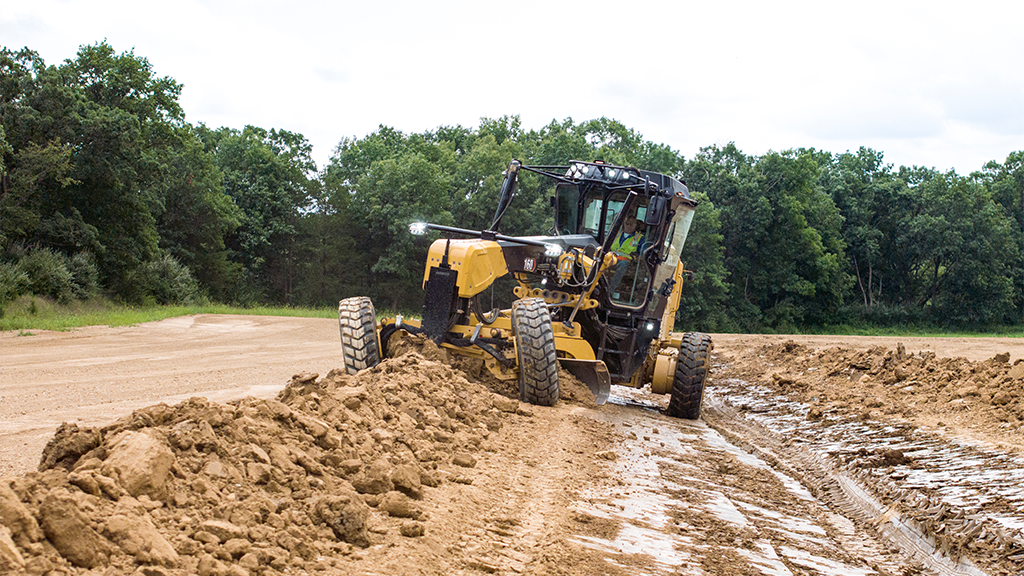

Redesigned Caterpillar 150 and 160 focus on operator comfort

Caterpillar has expanded its Next Generation motor grader platform with the redesigned Cat 150 and 160, featuring updates focused on operator ergonomics and streamlined controls. The most significant update is the introduction of joystick controls, which are standard on the 160 and optional on the 150.

The two three-axis joysticks consolidate steering, transmission, directional travel, throttle, and mouldboard functions into a single control system, reducing the hand and arm movement required compared to a traditional steering wheel and lever configuration. Cat also introduced a dedicated finish gear that allows slower, more precise machine control during final grading passes.

The redesigned cab complements the simplified controls with larger windows that improve sightlines to the mouldboard and front tires. A centralized 10-inch touchscreen serves as the interface for optional technologies, including Cat Grade; integrated front, rear, and 360-degree cameras; and Cat's People Detection system.

John Deere Construction & Forestry P-Tier Lineup combines advanced automation with grade control

John Deere's latest P-Tier motor graders combine integrated grade control with automation features that reduce repetitive operator adjustments throughout the grading process. Next Generation SmartGrade allows operators to access both 2D and 3D grade control through a single 10.1-inch touchscreen and supports upgrade paths for either Topcon or Leica positioning systems.

Standard automation features include blade flip, auto articulation, and cutting edge wear monitoring. The cutting edge wear feature allows operators to track blade wear and plan edge replacement before it affects grading performance. Intelligent Blade Control helps maintain a level blade throughout grading operations, and SmartSaddle automatically positions the blade in the optimal saddle position with the push of a button. Standard cross slope technology also offers multiple operating modes to accommodate different grading applications and operator preferences.

John Deere also redesigned the cab with updated seating, adjustable armrests, centralized controls, and improved display layouts to enhance operator comfort. Optional Advanced Vision camera systems provide additional visibility around the machine, helping operators maintain situational awareness in confined or busy work environments.

CASE Construction Equipment GR Series integrates new technology to improve grading precision

CASE's new GR Series motor graders — the GR925, GR930, and GR935 — leverage several technologies designed to reduce operator inputs while improving grading precision. Standard electro-hydraulic controls provide responsive control across all three models, while the GR925 and GR930 also offer mechanical controls for operators who prefer a more traditional feel.

The GR930 and GR935 feature a continuously variable transmission that delivers smooth, uninterrupted power without conventional gear shifting.

CASE also incorporates on-board guidance, automatic blade control, and GNSS navigation through its Advanced Smart Features to help operators achieve more accurate grades with fewer manual adjustments. The new graders feature a standard Protected Circle sealed slew bearing, which is designed to improve blade accuracy while reducing wear and maintenance, and an optional Blade Impact Absorption System that helps protect the mouldboard from unexpected impacts.

This article originally appeared in the September 2026 issue of Heavy Equipment Guide.
