Wacker Neuson’s latest telehandler goes beyond lifting with ground-engaging capability

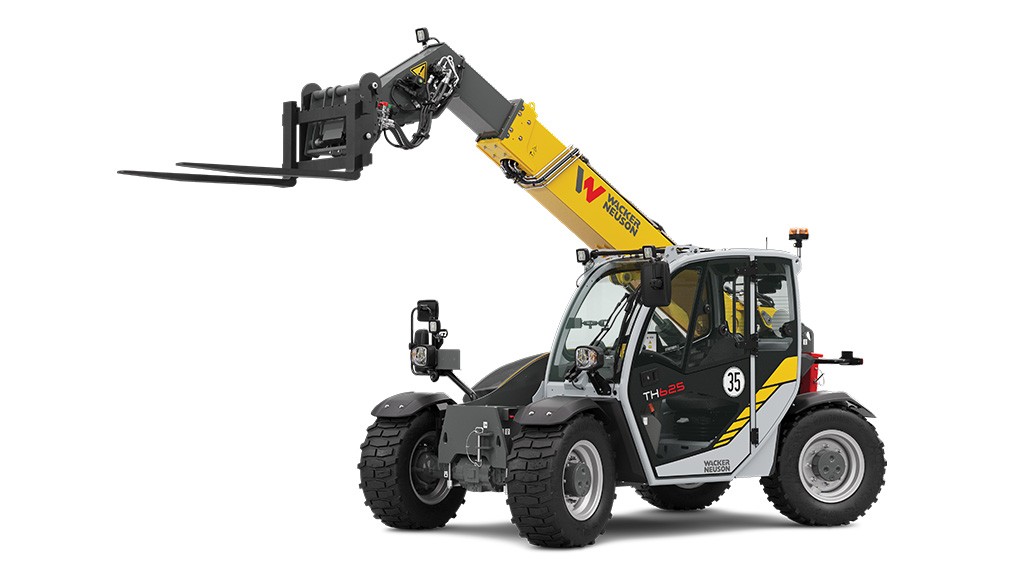

New to the Wacker Neuson telehandler line-up, the TH625 is a highly capable off-road telescopic forklift. But unlike previous iterations of telehandlers, this model is incredibly versatile, going beyond moving and lifting with ground-engaging capability. Equipped with a standard skid loader style attachment plate and a standard auxiliary hydraulics, this machine is ready to handle more than just pallet forks.

Visibility, stability, and versatility in one machine

All models are equipped with comfortable cabs featuring enhanced ergonomics and all-round visibility, electronically controlled travel drive with various travel modes, a telescopic arm that allows a clear view of the attachment, a wide range of options, and a modern machine design. The transversely installed motor and the optimized arrangement of components ensure easy accessibility for maintenance.

Also, the TH625 includes an integrated driver assistance system. The Vertical Loading System (VLS) allows the operator to choose between two loading functions, bucket mode and fork mode. In bucket mode, the boom automatically retracts when the operator lowers in order to keep the load as close to the front axle as possible to minimize tipping situations. In fork mode, the boom extends and retracts automatically when the operator raises the arm in order to keep the load in a vertical plane, making this machine ideal for loading shelves. By operating similar to a forklift, the operator does not have to adjust the boom while loading.

With an extended lifting height of 18 feet 6 inches and a payload of 5,511 pounds, the TH625 is offered in three editions and two Perkins diesel engine configurations, offering the right solution for varied customer needs.

Basic model features include push-button pressure relief to easily depressurize attachment hoses and the machine couplers, as well as three steering modes - front wheel, all wheel, and crab steering. "Front wheel steering is great for road travel  and applications where you may push or scrape material and don't want the machine's rear end to ‘kick out' when steering," says John Dotto, product application and training specialist. "All wheel steer is best in confined spaces, and when maximum maneuverability is the objective. Crab steer comes in handy for precise machine positioning at odd angles, or for parking a machine or ‘hugging' up to structures or curbs."

Additional features create a machine that can do it all

Higher horsepower and faster travel speed make the Deluxe and Premium editions of the TH625 suitable for high demand applications. They also include ride control for a smoother travel experience and better material retention during transport, as well as additional LED work lights and an amber safety beacon.

The Premium TH625 edition extends productivity and efficiency even further, with a return-to-dig feature, which allows the operator to program the angle position of the bucket cylinder. The boom and bucket positions can also be programmed in tandem, using the 7-inch display to select between tilt cylinder and tilt and boom position memory.

"Bucket shake is another nifty new feature," says Dotto. "On Premium TH625 editions, press and hold the return to dig and differential lock (reverse side of joystick) button at the same time. The tilt cylinder will rapidly and automatically cycle quickly to aid in clearing the bucket of sticky material."

Other features of the Premium edition machines include three selectable drive modes, an enhanced cab with an air ride, high back fabric seat, and auxiliary hydraulic flow control. Another solution built for the professional contractor, the TH625 combines power, reliable hydraulics, versatility and an excellent operator experience with sophisticated technology in a compact package.
