Komatsu WA270-8 wheel loader combines high production with low fuel consumption

September 12, 2016

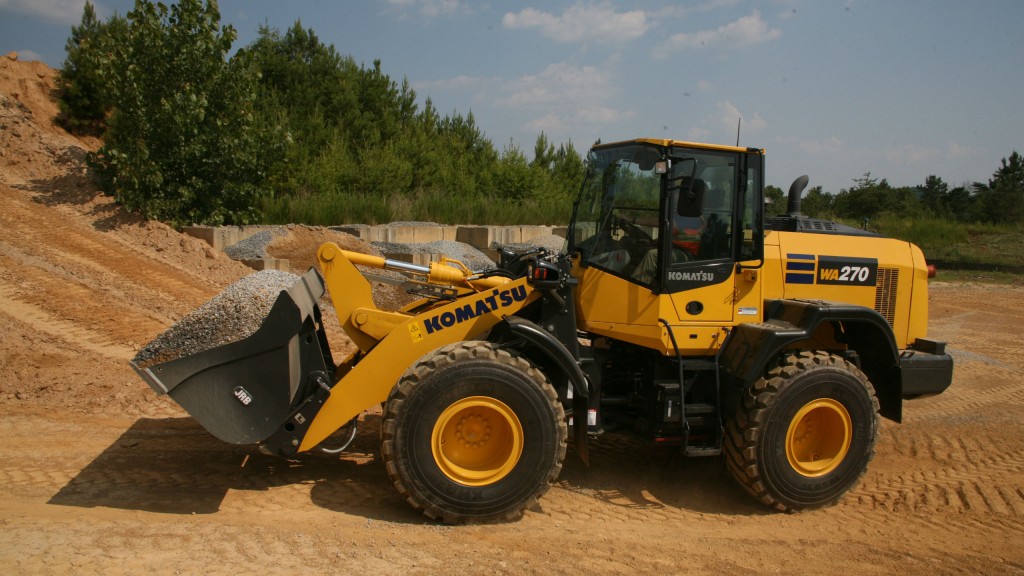

The WA270-8 wheel loader features a powerful 149-hp Tier 4 Final engine.

Komatsu America Corp. has introduced the new WA270-8 wheel loader. Equipped with an EPA Tier 4 Final engine, this addition to the wheel loader family combines high production with low fuel consumption and improved operator comfort.

The WA270-8’s parallel-lift linkage, with auto tilt-in to simulate a Z-bar, can be used in virtually any application from pallet handling to hard digging. Fuel consumption is lower by up to three percent in V-cycle loading and two percent in load-and-carry applications.

“Whether you’re lifting, digging or changing attachments on the fly, the WA270-8 is compact enough to squeeze between farm buildings, yet powerful enough to tackle jobs often planned for bigger machines,” said Frank Nyquist, product specialist, Komatsu America. “It’s one of the most versatile machines Komatsu offers,” Nyquist said.

Standard features of the new WA270-8 include:

Under the hood/performance enhancements

A powerful 6.69-litre, 149-hp, EPA Tier 4 Final–certified, SAA6D107E-3 engine uses up to three percent less fuel than its Tier 4 Interim predecessor.
Komatsu Diesel Particulate Filter (KDPF) and other aftertreatment components are designed in conjunction with the engine for efficiency and long life.
The new SCR system reduces NOx emissions and is designed to last the life of the engine.
More than 98 percent of KDPF regeneration is performed passively, with no action required of the operator and no interference with machine operation.
Proven, fourth-generation hydrostatic drivetrain with variable traction control and S-mode provides excellent traction control to reduce wheel slip. S-mode is ideal for snowy, icy or slippery conditions.
Creep mode in first gear is easily controlled via a knob on the RH console. This mode allows the operator to dial in travel speed from one to eight miles an hour.

In-cab enhancements/features

New, more comfortable, high-back, heated seat softens machine vibrations for operator comfort.
Pioneering KOMTRAX telematics system and monitor that provides key machine metrics, including KDPF status and DEF-level data, fuel consumption, plus performance information collected and sorted by operator ID.
Komatsu Auto-Idle Shutdown to reduce idle time and save fuel.
Auxiliary jack and two 12-volt ports.
Seven-inch, LCD colour monitor with Ecology Guidance.
Separate full-colour rear view monitor standard.

Additional features/benefits

Swing out, hydraulically driven cooling fan, with wider fin spacing and auto-reversing fan for ease of cleaning.
Gull-wing engine doors provide quick, convenient access for daily checks and service items.
Full rear fenders optional.
DEF tank features a convenient sight glass to discourage overfilling.

The WA270-8 is compact enough to squeeze between farm buildings, and ideal for lifting, digging or changing attachments on the fly.

The WA270-8’s parallel-lift linkage, with auto tilt-in to simulate a Z-bar, can be used in virtually any application from pallet handling to hard digging.
